Diecast Aluminum Enclosures

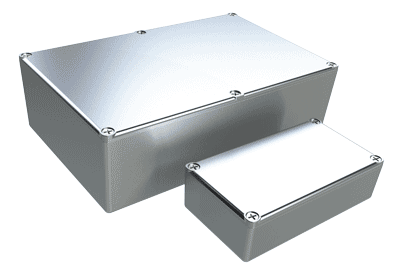

AL Series Diecast Aluminum Enclosures

Product ImagePart #Dimensions
(L x W x H) (in / mm)
Engineering Drawings
Diecast Aluminum EnclosureAL-23PDetails3.62 x 1.50 x 1.21 in.
91.95 x 38.10 x 30.73 mm
0.50 lbs.
3d fileDWGPDF
Diecast Aluminum EnclosureAL-24PDetails4.37 x 2.37 x 1.21 in.
111.00 x 60.20 x 30.73 mm
0.50 lbs.
3d fileDWGPDF
Diecast Aluminum EnclosureAL-34PDetails4.68 x 3.68 x 2.21 in.
118.87 x 93.47 x 56.13 mm
0.75 lbs.
3d fileDWGPDF
AL-47PDetails7.39 x 4.70 x 2.21 in.
187.71 x 119.38 x 56.13 mm
1.25 lbs.
3d fileDWGPDF
Diecast Aluminum EnclosureAL-48PDetails7.39 x 4.70 x 3.21 in.
187.71 x 119.38 x 81.53 mm
1.50 lbs.
3d fileDWGPDF
Diecast Aluminum EnclosureAL-70PDetails2.00 x 2.00 x 1.25 in.
50.80 x 50.80 x 31.75 mm
0.25 lbs.
3d fileDWGPDF
Diecast Aluminum EnclosureAL-71PDetails4.33 x 3.25 x 1.75 in.
109.98 x 82.55 x 44.45 mm
0.75 lbs.
3d fileDWGPDF
Diecast Aluminum EnclosureAL-72PDetails4.75 x 3.15 x 2.33 in.
120.65 x 80.01 x 59.18 mm
0.75 lbs.
3d fileDWGPDF
Diecast Aluminum EnclosureAL-73PDetails4.68 x 3.68 x 1.34 in.
118.87 x 93.47 x 34.04 mm
0.75 lbs.
3d fileDWGPDF
Diecast Aluminum EnclosureAL-74PDetails4.75 x 4.75 x 2.33 in.
120.65 x 120.65 x 59.18 mm
1.00 lbs.
3d fileDWGPDF
Diecast Aluminum EnclosureAL-75PDetails4.75 x 4.75 x 3.75 in.
120.65 x 120.65 x 95.25 mm
1.25 lbs.
3d fileDWGPDF
Diecast Aluminum EnclosureAL-76PDetails6.00 x 3.25 x 2.00 in.
152.40 x 82.55 x 50.80 mm
1.00 lbs.
3d fileDWGPDF
Diecast Aluminum EnclosureAL-77PDetails7.39 x 4.70 x 1.50 in.
187.71 x 119.38 x 38.10 mm
1.00 lbs.
3d fileDWGPDF
Diecast Aluminum EnclosureAL-78PDetails7.50 x 7.50 x 2.62 in.
190.50 x 190.50 x 66.55 mm
2.00 lbs.
3d fileDWGPDF
Diecast Aluminum EnclosureAL-79PDetails4.37 x 2.37 x 2.13 in.
111.00 x 60.20 x 54.10 mm
0.60 lbs.
3d fileDWGPDF
