Product Overview

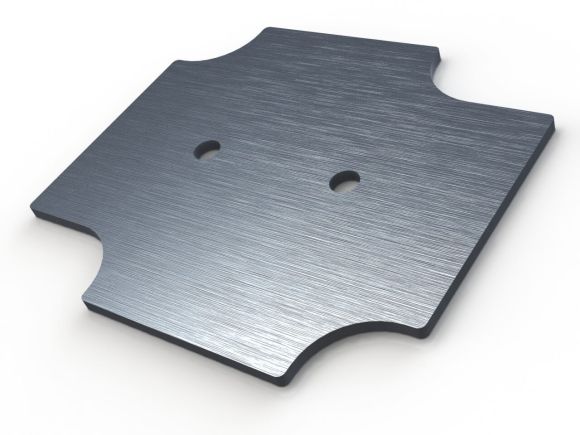

The aluminum 0.06" thick mounting panel is designed to fit the WA-20, WA-20F, WC-20, WC-20F, WP-20 and WP-20F enclosures. The panel fastens to the mounting bosses inside the base of the enclosure utilizing the screws that are included.
Specifications for
WX-10
Dimensions
| External Dimensions (in) Hover me Nominal external dimensions (LxWxH). Features (flanges, feet, bosses, etc.) may increase the overall dimensions. Refer to drawings/models for exact dimensional details. | 2.17 x 1.93 x 0.06 in |
| External Dimensions (mm) | 55 x 49 x 2 mm |
| Weight | 0.07 lbs |
| 2d Drawing PDF | Download 2D Drawing PDF |
Material Details
| Panel | Aluminum |
| Assembly Screws | Steel |
General
| Series | WC Series Accessories WP Series Accessories WA Series Accessories |
| Color | Metallic |
| Country of Origin |  United States |
Assembly Details
| Assembly Includes Hover me Most components require assembly upon delivery. | Panel and screw pack |
Downloads
Models & Drawings
| 3D Model | WX-10 STEP |
| 2D Drawing DWG | WX-10 DWG |
| 2D Drawing PDF | WX-10 PDF |
