Product Overview

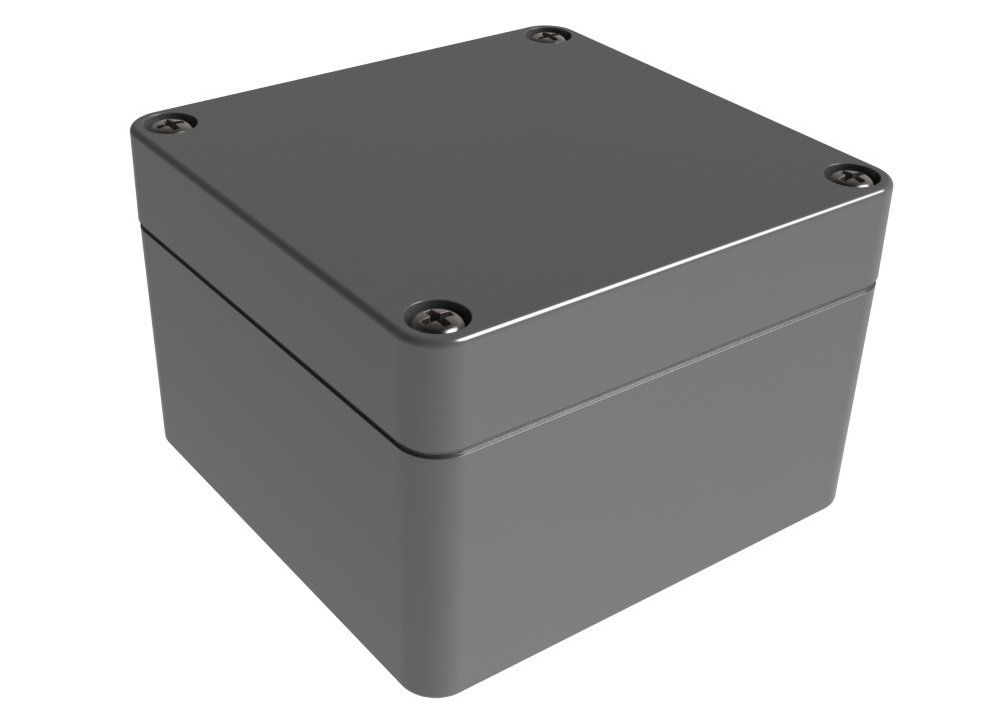

The WA-31 electronic enclosure is constructed from dark grey flame-retardant ABS plastic with a silicone rubber gasket for protection against adverse indoor conditions. Secure your PCB easily utilizing the 6 mounting bosses located in the base of the enclosure, or opt for the mounting panel (sold separately).
Specifications for
WA-31*16
Dimensions
| External Dimensions (in) Hover me Nominal external dimensions (LxWxH). Features (flanges, feet, bosses, etc.) may increase the overall dimensions. Refer to drawings/models for exact dimensional details. | 3.23 x 3.15 x 2.17 in |
| External Dimensions (mm) | 82 x 80 x 55 mm |
| Internal Dimensions (in) Hover me Nominal internal dimensions (LxWxH). Features (screw towers, mounting bosses, corner radii, wall draft, etc.) may impact the overall dimensions. Refer to drawings/models for exact dimensional details. | 2.95 x 2.88 x 1.91 in |
| Internal Dimensions (mm) | 75 x 73 x 49 mm |
| Wall Thickness Hover me Nominal wall thickness. Wall thickness may vary throughout the enclosure. Refer to drawings/models for exact details. | 0.125 in |
| Weight | 0.27 lbs |
| 2d Drawing PDF | Download 2D Drawing PDF |
Material Details
| Download Material Specs | Download Material Specs |
| Base | ABS |
| Cover | ABS |
| Gasket | Silicone |
| Assembly Screws | Stainless steel |
Application
| Application | Indoor use |
| UV Resistant | No |
| Waterproof | Yes |
Downloads
Models & Drawings
| 3D Model | WA-31 STEP |
| 2D Drawing DWG | WA-31 DWG |
| 2D Drawing PDF | WA-31 PDF |
| Other Files | WA-31 Printing Template |
Material Specs
| Material Specs | ABS Plastic Specs |
Accessory Guide
Optional Accessories
| Internal Mounting Panel | WX-62 |
| Adhesive PCB Mounting Standoffs | MB-01-20 |
| Cable Management & Venting Accessories | Cable Glands & Vents |
| Surface Mounting Kit | WA-90 |
Mounting Boss Screws
| PCB Mounting Boss Screws (bosses with brass inserts) | SCREWS-M3-6-100 |
| PCB Mounting Boss Screws (bosses without brass inserts) | SCREWS-MBR-100 |
