External Dimensions (in) Hover me Nominal external dimensions (LxWxH). Features (flanges, feet, bosses, etc.) may increase the overall dimensions. Refer to drawings/models for exact dimensional details. | 7.58 x 5.61 x 0.06 in |
External Dimensions (mm) | 193 x 142 x 2 mm |
Weight | 0.25 lbs |
2d Drawing PDF | Download 2D Drawing PDF |

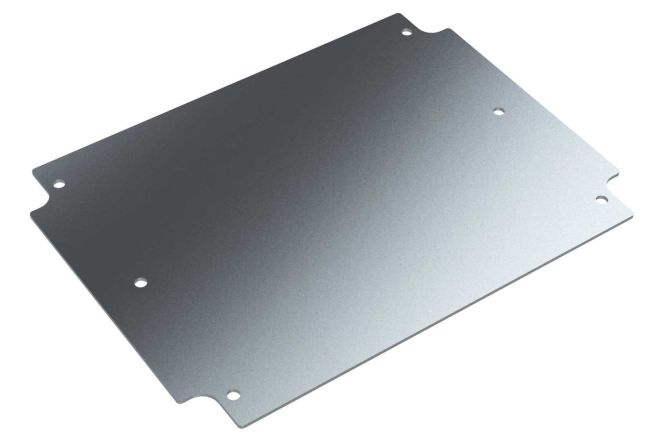

Panel | Aluminum |
3D Model | SG-14P STEP |
2D Drawing DWG | SG-14P DWG |
2D Drawing PDF | SG-14P PDF |
SG Series NEMA Enclosures | SG-14 |
