Product Overview

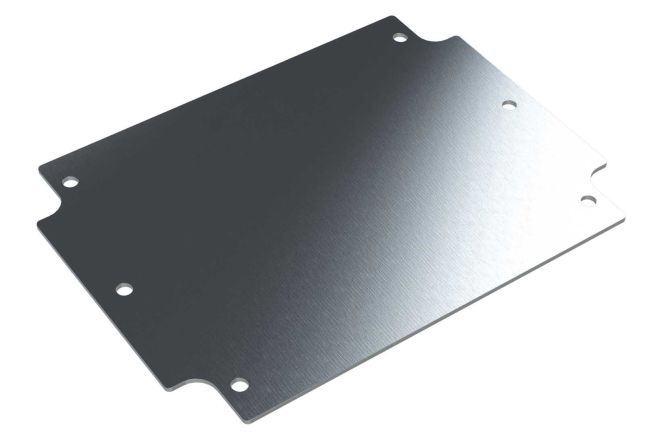

The SG-13P internal aluminum mounting panel, featuring a natural finish, is designed to fasten to the mounting bosses inside the base of the SG-13 enclosure. NOTE: the panel mounting screws are not included with the purchase of the panel, but instead, are provided with the purchase of the compatible enclosure.
Specifications for
SG-13P
Dimensions
| External Dimensions (in) Hover me Nominal external dimensions (LxWxH). Features (flanges, feet, bosses, etc.) may increase the overall dimensions. Refer to drawings/models for exact dimensional details. | 6.00 x 4.43 x 0.06 in |
| External Dimensions (mm) | 152 x 113 x 2 mm |
| Weight | 0.15 lbs |
| 2d Drawing PDF | Download 2D Drawing PDF |
Material Details
| Panel | Aluminum |
General
| Series | SG Series Accessories |
| Color | Metallic |
| Country of Origin |  United States |
Assembly Details
| Assembly Includes Hover me Most components require assembly upon delivery. | Panel only (assembly screws included with purchase of enclosure) |
Downloads
Models & Drawings
| 3D Model | SG-13P STEP |
| 2D Drawing DWG | SG-13P DWG |
| 2D Drawing PDF | SG-13P PDF |
Enclosure Guide
Compatible Enclosures
| SG Series NEMA Enclosures | SG-13 |
