Product Overview

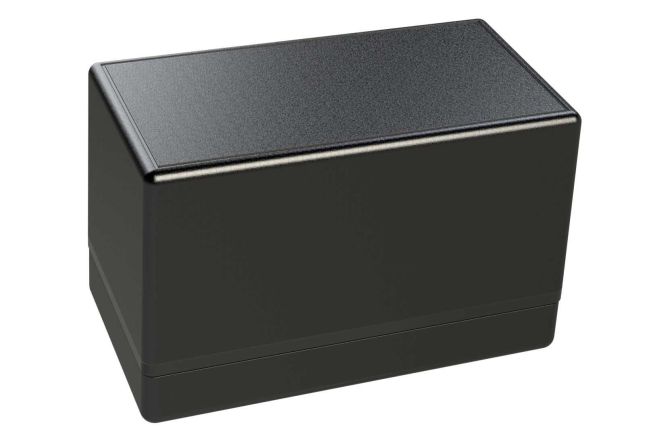

The ID-2420P is crafted from black flame retardant ABS plastic, and features 4 PCB mounting bosses in the base. The extra-deep cover fastens from the base to keep screws hidden while providing ample interior space for various DIY potting applications.
Specifications for
ID-2420PMB
Dimensions
| External Dimensions (in) Hover me Nominal external dimensions (LxWxH). Features (flanges, feet, bosses, etc.) may increase the overall dimensions. Refer to drawings/models for exact dimensional details. | 4.00 x 2.13 x 2.59 in |
| External Dimensions (mm) | 102 x 54 x 66 mm |
| Internal Dimensions (in) Hover me Nominal internal dimensions (LxWxH). Features (screw towers, mounting bosses, corner radii, wall draft, etc.) may impact the overall dimensions. Refer to drawings/models for exact dimensional details. | 3.94 x 2.06 x 1.35 in |
| Internal Dimensions (mm) | 100 x 52 x 34 mm |
| Wall Thickness Hover me Nominal wall thickness. Wall thickness may vary throughout the enclosure. Refer to drawings/models for exact details. | 0.09 in |
| Weight | 0.18 lbs |
| 2d Drawing PDF | Download 2D Drawing PDF |
Material Details
| Download Material Specs | Download Material Specs |
| Base | ABS |
| Cover | ABS |
Application
| Application | Indoor use |
| UV Resistant | No |
| Waterproof | No |
General
| Series | ID Series |
| Color | Black |
| Country of Origin |  United States |
| Manufacturer | Polycase |
Assembly Details
| Assembly Includes Hover me Most components require assembly upon delivery. | Base, cover, gasket, and 4 screws |
| Screw Torque | 4 in lbs |
| External Mounting Style | None |
| Internal Mounting Option | PCB mounting bosses in base |
Downloads
Models & Drawings
| 3D Model | ID-2420P STEP |
| 2D Drawing DWG | ID-2420P DWG |
| 2D Drawing PDF | ID-2420P PDF |
| Other Files | ID-2420P Printing Template |
Material Specs
| Material Specs | ABS Plastic Specs |
Accessory Guide
Optional Accessories
| PCB Mounting Boss Screws | SCREWS-MBR-100 |
| Adhesive PCB Mounting Standoffs | MB-01-20 |
