External Dimensions (in) Hover me Nominal external dimensions (LxWxH). Features (flanges, feet, bosses, etc.) may increase the overall dimensions. Refer to drawings/models for exact dimensional details. | 3.66 x 1.69 x 0.06 in |
External Dimensions (mm) | 93 x 43 x 2 mm |
Weight | 0.05 lbs |
2d Drawing PDF | Download 2D Drawing PDF |

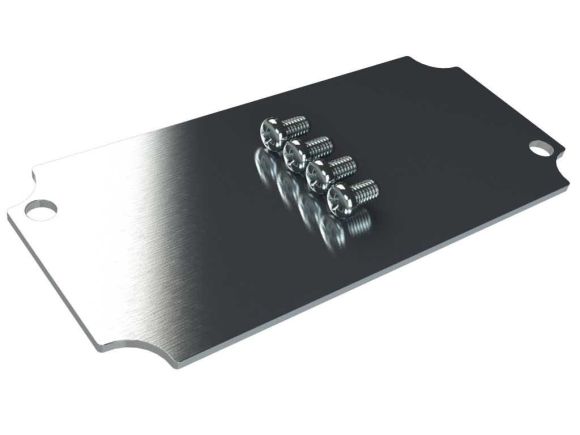

Panel | Aluminum |
Assembly Screws | Steel |
3D Model | AN-20K STEP |
2D Drawing DWG | AN-20K DWG |
2D Drawing PDF | AN-20K PDF |
