Product Overview

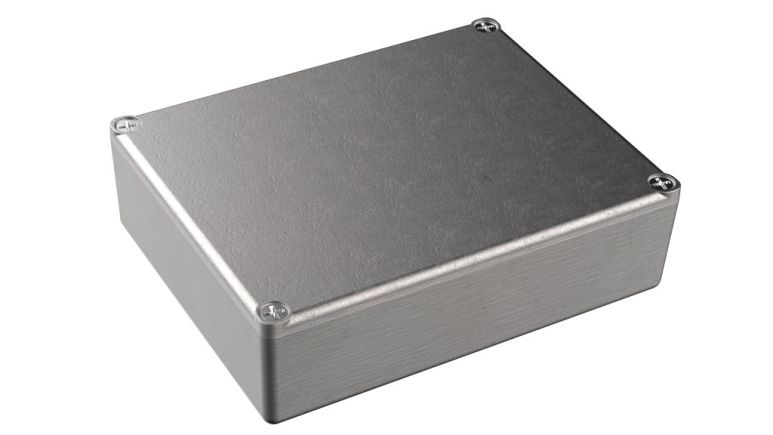

Constructed from ADC-12 alloy diecast aluminum, the AL-73P provides a natural aluminum finish and inherent EMI/RFI attenuation, while it's low-profile makes it ideal for applications where space is a concern. Four thread forming cover screws are included, making assembly of the base and cover simple.
Specifications for
AL-73P-01
Dimensions
| External Dimensions (in) Hover me Nominal external dimensions (LxWxH). Features (flanges, feet, bosses, etc.) may increase the overall dimensions. Refer to drawings/models for exact dimensional details. | 4.68 x 3.68 x 1.34 in |
| External Dimensions (mm) | 119 x 93 x 34 mm |
| Internal Dimensions (in) Hover me Nominal internal dimensions (LxWxH). Features (screw towers, mounting bosses, corner radii, wall draft, etc.) may impact the overall dimensions. Refer to drawings/models for exact dimensional details. | 4.42 x 3.41 x 1.18 in |
| Internal Dimensions (mm) | 112 x 87 x 30 mm |
| Wall Thickness Hover me Nominal wall thickness. Wall thickness may vary throughout the enclosure. Refer to drawings/models for exact details. | 0.09 in |
| Weight | 0.47 lbs |
| 2d Drawing PDF | Download 2D Drawing PDF |
Material Details
| Download Material Specs | Download Material Specs |
| Base | Aluminum |
| Cover | Aluminum |
| Assembly Screws | Steel |
Application
| Application | Indoor use |
| Waterproof | No |
Downloads
Models & Drawings
| 3D Model | AL-73P STEP |
| 2D Drawing DWG | AL-73P DWG |
| 2D Drawing PDF | AL-73P PDF |
| Other Files | AL-73P Printing Template |
Material Specs
| Aluminum Material Specs | Aluminum Specs |
Accessory Guide
Optional Accessories
| Adhesive PCB Mounting Standoffs | MB-01-20 |
